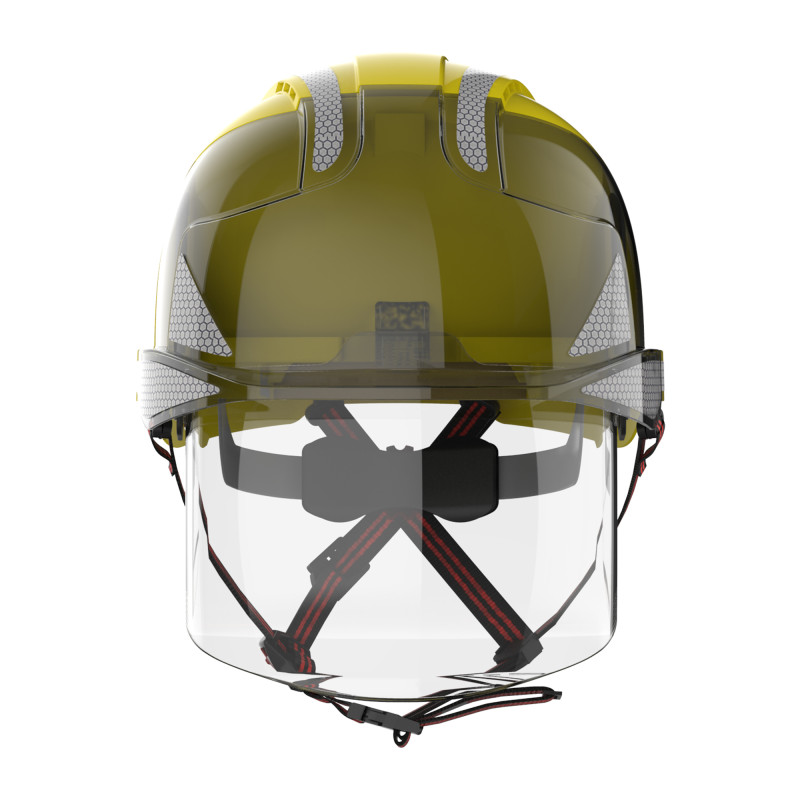

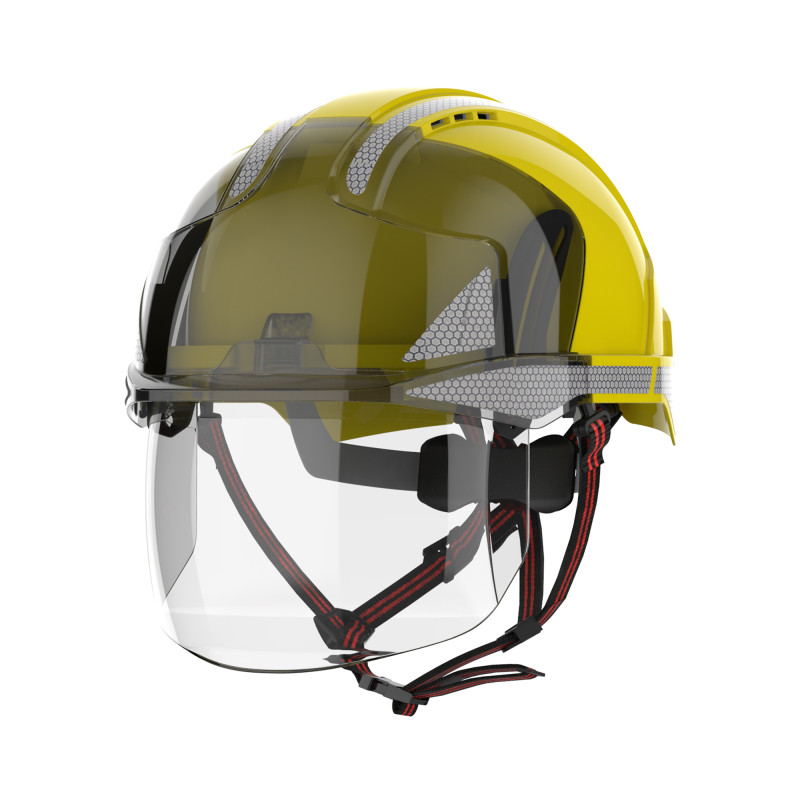

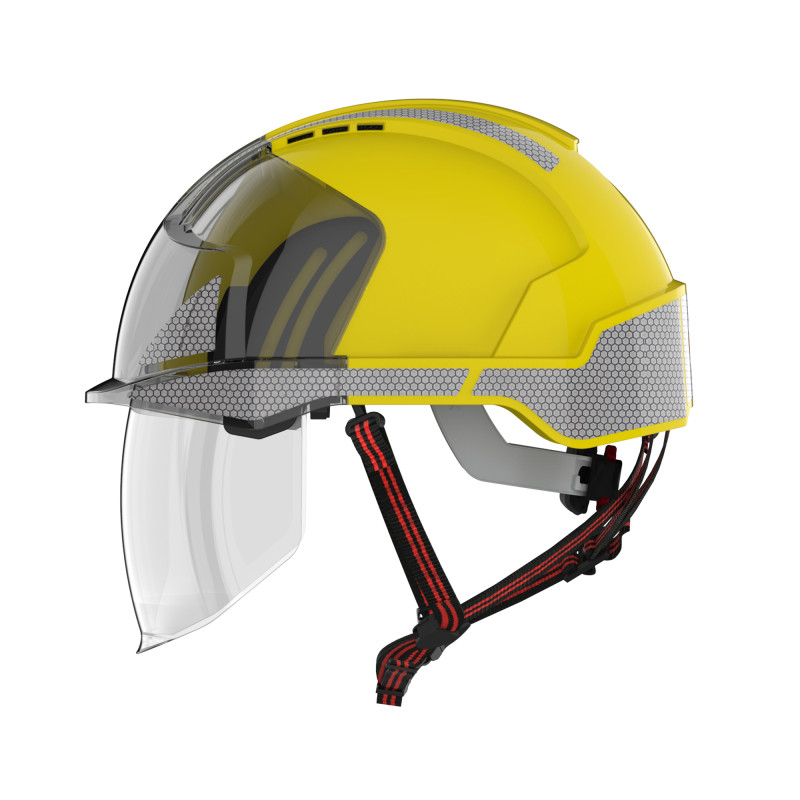

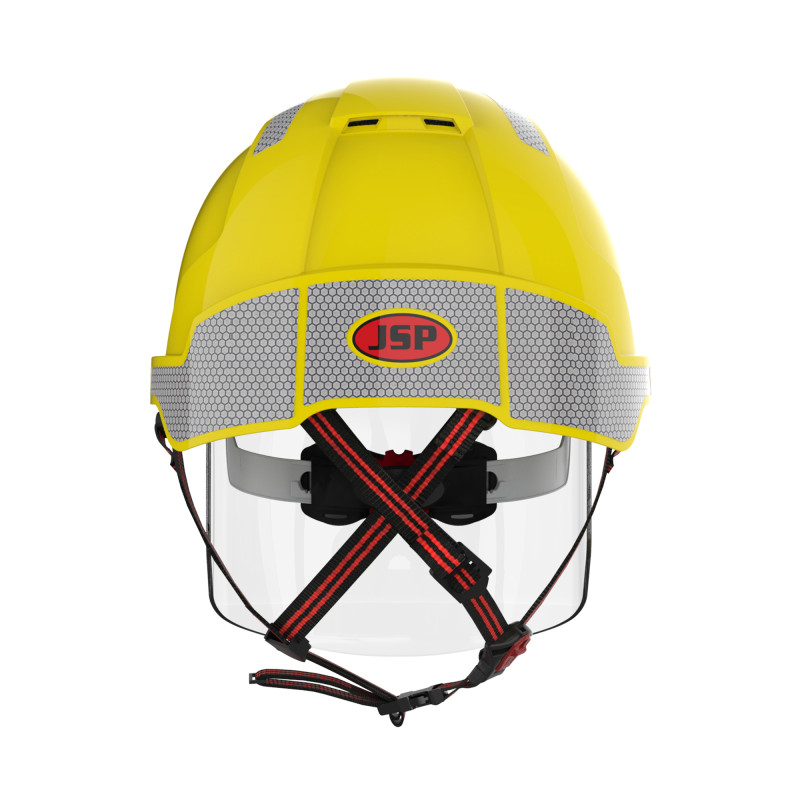

EVO® VISTAshield® DUALSWITCH™ combines the new EVO® VISTA® retractable eyewear helmet technology with the innovative DUALSWITCH™ chinstrap system, fully certified to both EN 397 and EN 12492 with the ability to change between the two standards easily at the flick of a switch
The VISTAshield® faceshield offers A‐rated impact resistance � tested with a 6mm steel ball bearing at speeds of up to 425mph (685kph)
The eyewear is interchangeable, allowing users to swap the faceshield for a VISTAlens® overspec, to ensure the appropriate protection is on hand when required
Features & Benefits
Optical Class 1 ‐ High optical quality with no optical distortion
A ‐ Impact rating
High energy impact; 6mm, 0.86g ball travelling at 425mph (684kph)
T ‐ Impact resistance at extreme temperatures (Tested at ‐5℃ and +55℃)
K Rated ‐ Anti‐Scratch resistance to surface damage from fine particles
N Rated ‐ Anti‐Mist resistance to fogging
UV Protection ‐ 2: UV filter (EN 170) provides protection from harmful UV
UV 2C‐1.2 2: UV filter (EN 170) provides protection from harmful UV
C: Unimpaired colour perception.1.2: High light transmission
Molten Metal Tested ‐ No penetration to helmet shell
Shell deformation must remain under
Lateral Deformation Tested ‐ Additional EN 397 test
‐40℃ Tested ‐ The helmet is pretreated in a cold chamber at ‐40℃ for up to 24 hours
SAFETY CELL
The safety cell concept prevents ricocheting debris travelling up the eyewear and impacting the scalp
In addition the faceshield cannot make contact with the scalp, preventing injury should it be forced back on to the safety cell
4‐POINT CHINSTRAP
The 4‐point chinstrap is easy to adjust on the head
Size and anchorage point adjustment enable a tailored fit for different head sizes, ensuring stability and greater comfort
SWITCH DOWN
The chinstrap release force of EN 12492 is greater than 500 Newtons
This limits the risk of losing the helmet during a fall
SWITCH UP
The chinstrap release force of EN 397 is between 150 and 250 Newtons
This limits the risk of choking; the chinstrap is designed to release if caught up
INTERCHANGEABLE EYE PROTECTION
The VISTAshield® faceshield provides A‐rated impact protection
Swap with a VISTAlens® overspec for medium‐energy impact protection with a close‐fitting TPR seal, available in clear and indoor/outdoor lens shades
MAXIMUM COMFORT
The Revolution® Flex wheel ratchet harness secures the helmet, eliminating pressure points to provide maximum comfort
Fitted with a replaceable Chamlon™ cotton sweatband and fully compatible with EVO® cooling sweatbands for protection against heat stress
SECURE FIT
The harness cradles the head to keep the helmet stable with an adjustable 4‐point chinstrap for increased security.3D‐Adjustment depth settings enable the most precise fit attainable on a safety helmet
COVERAGE
EVO®VISTAshield® has been designed to maximise facial coverage while remaining compact to allow freedom of movement
PRESCRIPTION PROTECTION
Fully compatible with prescription eyewear, the EVO®VISTAshield® allows the wearer�s prescription glasses to be worn comfortably underneath the integrated faceshield, reducing cost and ensuring optimum protection and vision
COMPATIBILITY
EVO®VISTAshield® DualSwitch™ is designed to be compatible with other JSP PPE, such as the Force®8 half mask with PressToCheck™ filters and Sonis® mounted ear defenders
ADVANCED ACCESSORIES
Specially engineered attachment points on the helmet shell enable fitting of an advanced range of accessories, including headlamps, goggles and ID card holders
VENTILATION
Dual vented shell increases comfort and encourages a cooling air flow, reducing helmet temperatures by an average 2‐3 degrees
